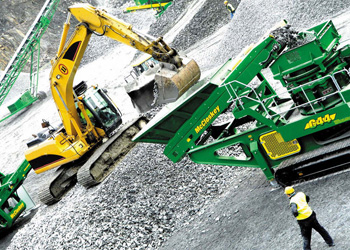

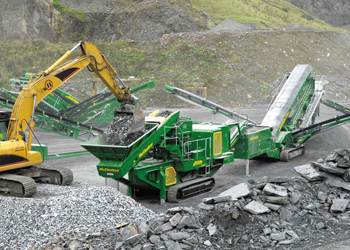

Following from the recent introduction of the C50 Jaw Crusher, McCloskey International are launching the C44 Cone Crusher to add to its new full range of portable crushing plants.

Continuing with McCloskey's focus on quality components, durability, and reliability, the new C44 Cone Crusher is sure to add to McCloskey's reputation for Proven Performance. Offering high material capacity and throughput, large stockpile capacity, and customer focused features, the new C44 Cone Crusher will look to put McCloskey's at the fore of mobile crushing plants, and push the boundaries of industry performance.

Features, Benefits and Options

• Feeder – Heavy duty with a hardox steel hopper.
• Metal Detector – This combined with the hopper helps to protect the cone.
• Crusher – Telsmith cone - built to be reliable in the toughest operating conditions.
• Power Unit – CAT 430 HP engine with all round access for maintenance.
• Optional roll in bogie
• Optional Recirculating System
• Optional Coarse, Medium and Fine Liners
• Optional Dust Suppression

Specifications

• Power Plant: 430 HP (320 kw) Tier III CAT C13 Engine
• Cone: Telsmith
• Hopper: 5m3 (6.5yd3")
• Transport Height: 11' – 2'' (3.4m)
• Transport Length: 53' – 7'' (16.33m)
• Transport Width: 9' – 6'' (2.9m)
• Weight: 45,000 kg (99,000 lbs)
